Animate a Simple Pendulum with Manim

In this post, we’ll explore how to create a basic animation of a simple pendulum using the Python library Manim. Manim is a powerful and user-friendly tool for creating mathematical animations, perfect for visualizing scientific concepts. Developed by Grant Sanderson, the creator of the popular educational YouTube channel 3Blue1Brown. Manim is a fantastic tool for teachers, researchers to illustrate complicated ideas, simulate how things work in real life, and explain tricky science concepts in a clear and visual way.

Setting up Manim

Manim playground

Setting up manim is simple. While local installation is recommended for full functionality, but if you want to play around with manim you can check out their in-browser interactive manim playground without local installation on https://try.manim.community/.
You will provided with a jupyter notebook where you can add your python codes to test and play with Manim.

Local installation

You can install Manim locally , all you need is a decent code editor. I prefer using Visual Studio Code. After installing the editor install Python extension for VScode and pylance which will make the programming experience less painful. Installing Manim library which will be different depending up on the OS you are using.

Install VS Code
Install Python
Add extensions to VS code - python and pylance
Install Manim Library on your local machine.

Windows

Install a package manager Chocolatey following their instructions.
Open a PowerShell window as administrator and type the following command:
```
choco install manim
```

Linux - Ubuntu

Open a terminal window.

Install dependencies:

sudo apt update
sudo apt install build-essential python3-dev libcairo2-dev libpango1.0-dev ffmpeg python3-pip

Install Manim using pip
```
pip3 install manim
```

macOS

Install Homebrew - follow the instructions on their website.
Open Terminal
```
brew install manim
```

You can find more about the installation process from these links.

Jumping into the code

open the VS Code and create a file named pendulum.py

The first step is to import the necessary libraries, manim and numpy. NumPy is a numerical python package which is needed for calculations like finding cosine angle cos , squre-root sqrt() etc. the next step is to define the frame size for our animation which is not mandatory. Here I have chosen a potrait frame of size 1080 X 1920. If we do not choose the frame size then the output will be in the default 1920 x 1080.

from manim import *
import numpy as np

config.frame_size = (1080, 1920)

Now lets define our first scene. Manim takes classes as scenes and render it as a short . We can create our first scene named Scene_1 as :

class Scene_1(Scene):
     def construct(self):

Please do care about the spaces in the second line, Python is an indented language. Each line of code within a block must be indented by the same number of spaces or tabs.

Now we can create our pendulum. We can start by creating a pendulum stand. For that first we need to create a Line() named lineA which starts from 8 units above the oringin (center of the frame) to 4 units below. We can color the line blue color. We can set it to behind the scene plane by changing its z_index in the same way create another small blue line for the hook and and a blueRectangle() named rect. Group the components with VGroup() name it as stand.

        lineA = Line(start=UP*8,end=DOWN*4)
        lineA.set_color(BLUE)
        lineA.set_z_index(lineA.z_index-1)

        lineB = Line()
        lineB.set_color(BLUE)
        lineB.next_to(lineA,direction=UP,buff=0)
        lineB.set_z_index(lineB.z_index-1)

        rect = Rectangle(height=1,width=2)
        rect.set_color(BLUE)
        rect.set_fill(BLUE, opacity=1)
        rect.next_to(lineA,direction=DOWN,buff=0)

        stand = VGroup(lineA,lineB,rect)

Next step is to create a bob and string using Circle() with a radius=0.5 and red colour . Create the string with Line() as same way we did erlier. Connect the bob and string using VGroup().

        #  BOB
        circle = Circle(radius=0.5)
        circle.set_color(WHITE)
        circle.set_fill(RED, opacity=1)

        # string
        fix_point = ORIGIN+UP*8
        line = Line(start=[0,8,0],end=[0,0,0],)
        line.set_z_index(line.z_index-1)

        pendulum =VGroup(circle,line)

Its time to animate the pendulum.

self.play( Create(stand))
self.play( Create(pendulum))

Lets check wether the code works, for that we need to run our code.

Go to Terminal > New Terminal

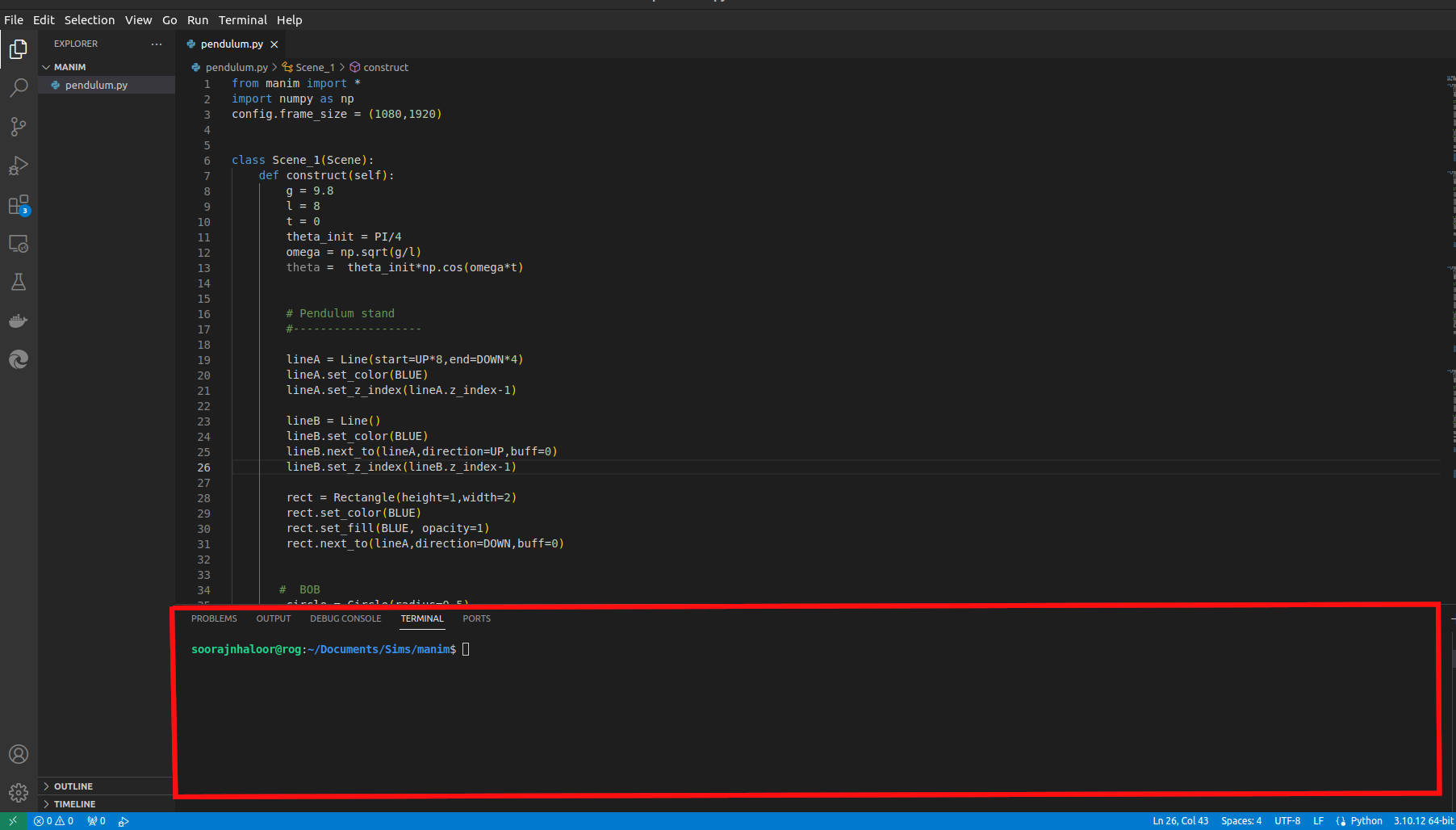

A new terminal will be created under the editor

paste the below code to the terminal.

 python -m manim ./pendulum.py

If everything goes good you will get an output like :

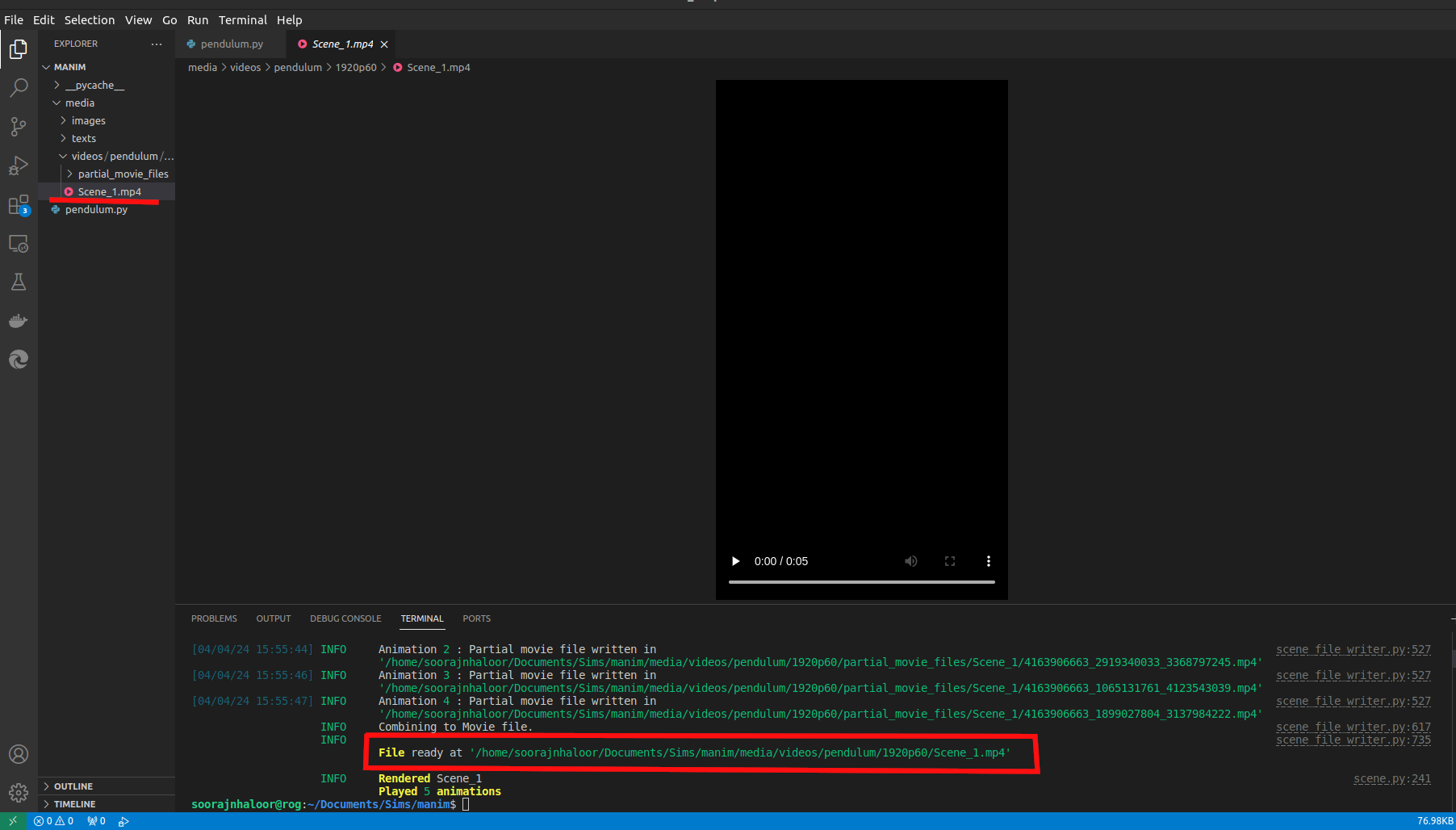

Now check the project window. you will find your animation in media > videos > Scene_1.mp4

But wait. The pendulum is not oscilating. So what next? So the next step is to add the physics.

\begin{equation} \theta = \theta_o cos(wt) \end{equation} Where \(\theta_o\) is the maximum angle, \(w\) is the anguar frequancy (\(w=\sqrt(g/l)\) here \(g\) is gravitational acceleration and \(l\) is the length of pendulum) and \(t\) is the time of oscillation. This equation accurately describes the angular position of a simple pendulum over time. We can use this equation to oscilate our pendulum.

Lets define our variables first. Add the variables right under the def construct function.

class Scene_1(Scene):
    def construct(self):
        g = 9.8
        l = 8
        t = 0
        theta_init = PI/4
        omega = np.sqrt(g/l)
        theta =  theta_init*np.cos(omega*t)


Make an Oscillation using Rotate() function. paste the below code after removing the line self.play(Create(pendulum))

self.wait(duration=1)
        while t <=5 :
            theta = theta_init*np.cos(omega*t+1)
            t = t+2.25

            self.play(
                Rotate(
                    pendulum,
                    angle=theta,
                    about_point = fix_point,
                    run_time=1.5
                )
            )

The final code will look like :

class Scene_1(Scene):
    def construct(self):
        g = 9.8
        l = 8
        t = 0
        theta_init = PI/4
        omega = np.sqrt(g/l)
        theta =  theta_init*np.cos(omega*t)


       #  Pendulum stand
        lineA = Line(start=UP*8,end=DOWN*4)
        lineA.set_color(BLUE)
        lineA.set_z_index(lineA.z_index-1)

        lineB = Line()
        lineB.set_color(BLUE)
        lineB.next_to(lineA,direction=UP,buff=0)
        lineB.set_z_index(lineB.z_index-1)

        rect = Rectangle(height=1,width=2)
        rect.set_color(BLUE)
        rect.set_fill(BLUE, opacity=1)
        rect.next_to(lineA,direction=DOWN,buff=0)

        stand = VGroup(lineA,lineB,rect)

       #  BOB
        circle = Circle(radius=0.5)
        circle.set_color(WHITE)
        circle.set_fill(RED, opacity=1)
       # string
        fix_point = ORIGIN+UP*8
        line = Line(start=[0,8,0],end=[0,0,0],)
        line.set_z_index(line.z_index-1)

        pendulum =VGroup(circle,line)


        self.play( Create(stand))
        self.wait(duration=1)
        while t <=5 :
            theta = theta_init*np.cos(omega*t+1)
            t = t+2.25

            self.play(
                Rotate(
                    pendulum,
                    angle=theta,
                    about_point = fix_point,
                    run_time=1.5
                )
            )

Run the code . Now the pendulum is oscillating!

See this simple pendulum animation here : https://www.youtube.com/shorts/khpV78PiApc
